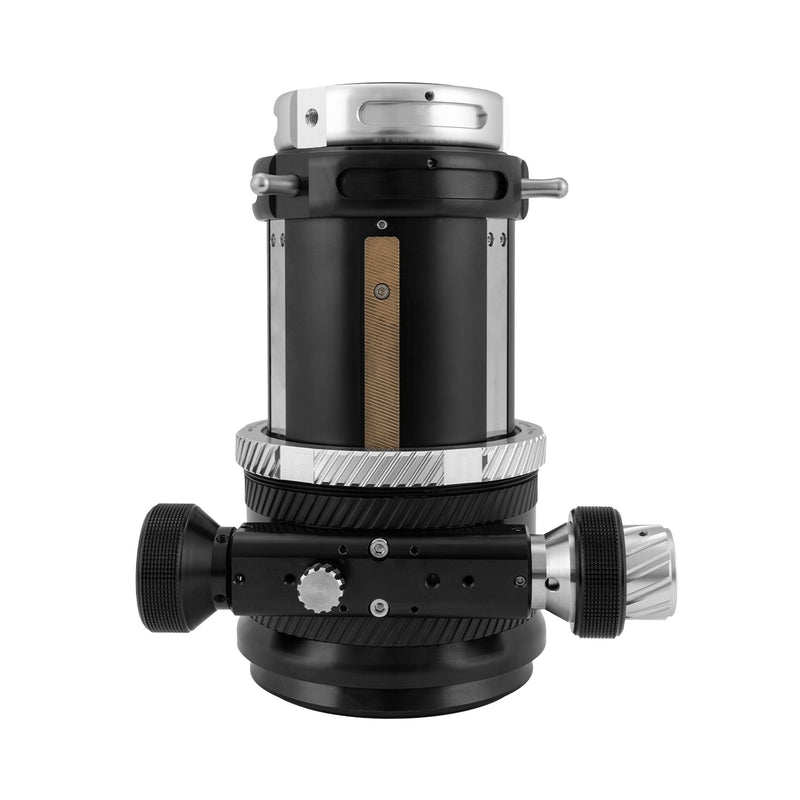

What is the advantage of this FCD100-127-CF focuser's rack-and-pinion design?
The primary advantage is its 17 lb lifting capacity and resistance to slippage. Unlike Crayford focusers that rely on friction, a rack-and-pinion uses gears for a positive mechanical connection, preventing the drawtube from moving under the weight of a heavy camera and filter wheel.

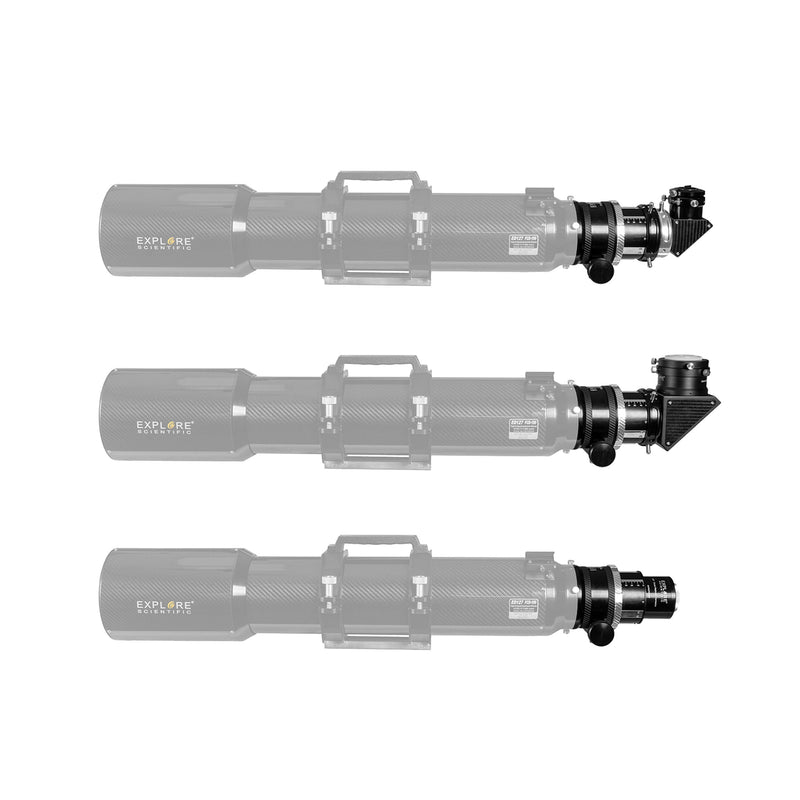

Will this focuser fit a telescope other than the Explore Scientific FCD100-127-CF?
No, this specific model is sold with a back cell adapter threaded exclusively for the Explore Scientific FCD100-127-CF carbon-fiber optical tube. While the base focuser design is used on other scopes, this package is a dedicated upgrade for that model.

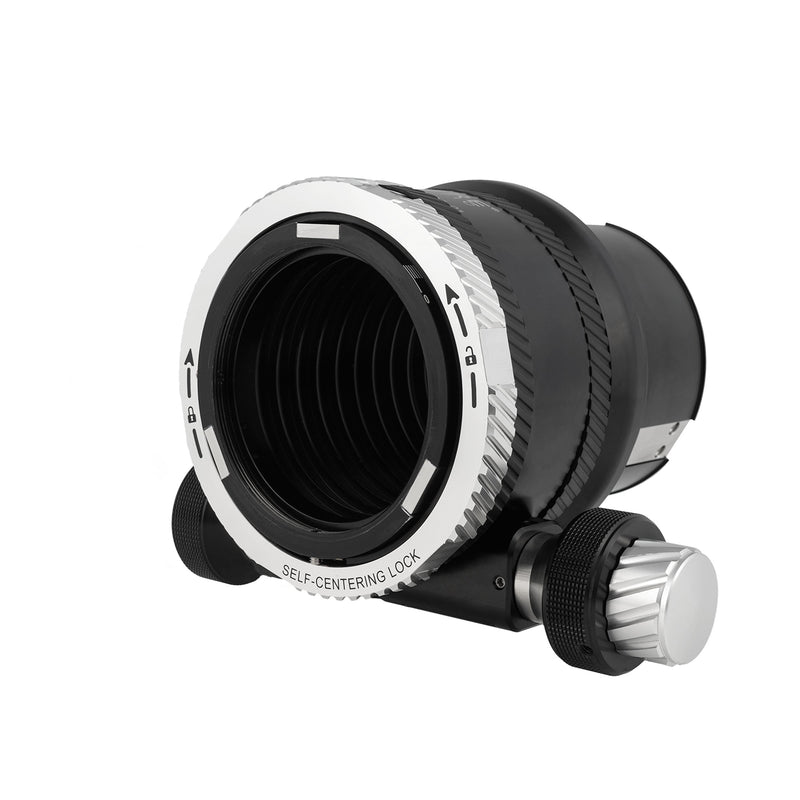

How does the self-centering system prevent optical tilt in the FCD100-127-CF focuser?
The self-centering mechanism uses a compression ring that applies uniform pressure around the eyepiece or camera nosepiece. This ensures the accessory is held perfectly on the central optical axis, preventing the tilt and image shift that can be introduced by traditional thumbscrew-based clamps.
Can the 17 lb capacity of this focuser handle a full-frame monochrome camera and 7-position filter wheel?
Yes. A typical heavy imaging train, such as a ZWO ASI6200MM Pro, a 7x2" filter wheel, and an off-axis guider, weighs between 8 and 12 lbs. The 17 lb capacity of this focuser provides more than enough support to handle such a setup without flexure or slippage, even when the telescope is pointed near the zenith.

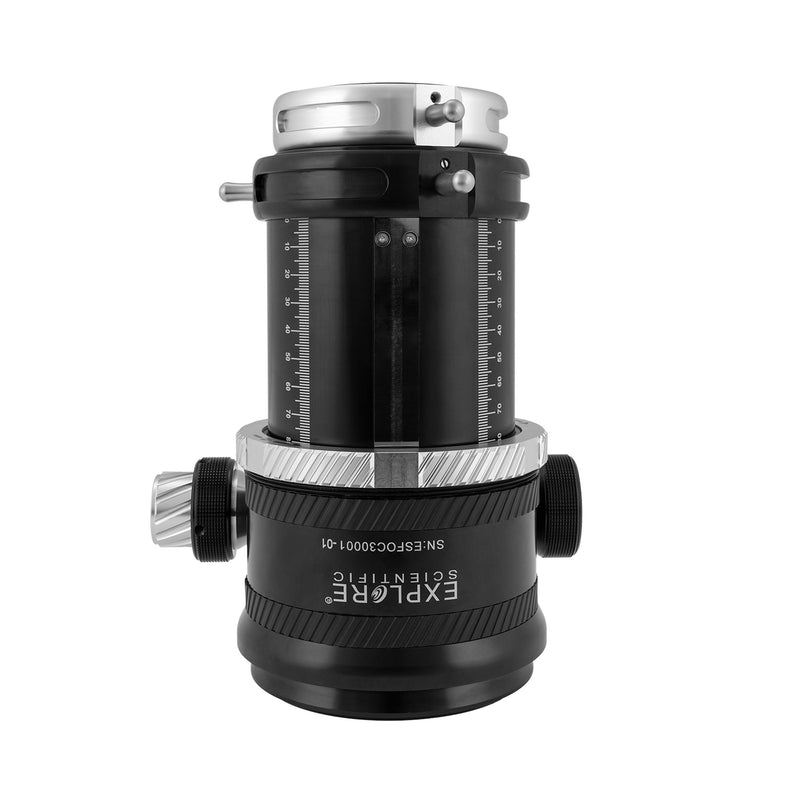

With 84.5mm of travel, can I reach focus on my FCD100-127-CF with a focal reducer?
Yes, the 84.5mm drawtube travel provides substantial range to accommodate the change in focal point introduced by most common focal reducers or flatteners. This allows you to achieve sharp focus across a wide variety of imaging configurations without needing extra extension tubes.

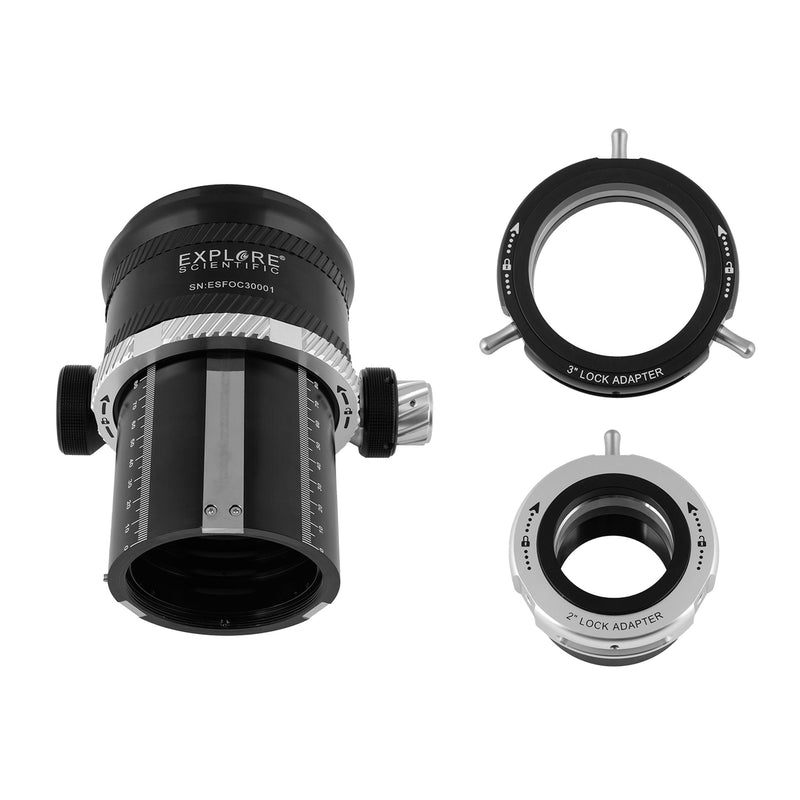

What accessories can I connect to the M82x1.25 thread on this focuser?
The female M82x1.25 thread is a robust connection standard for larger imaging accessories. It allows you to securely thread on compatible 3-inch field flatteners, reducers, or adapters for direct connection to 2-inch accessories, providing a much more rigid connection than a simple compression fitting.
