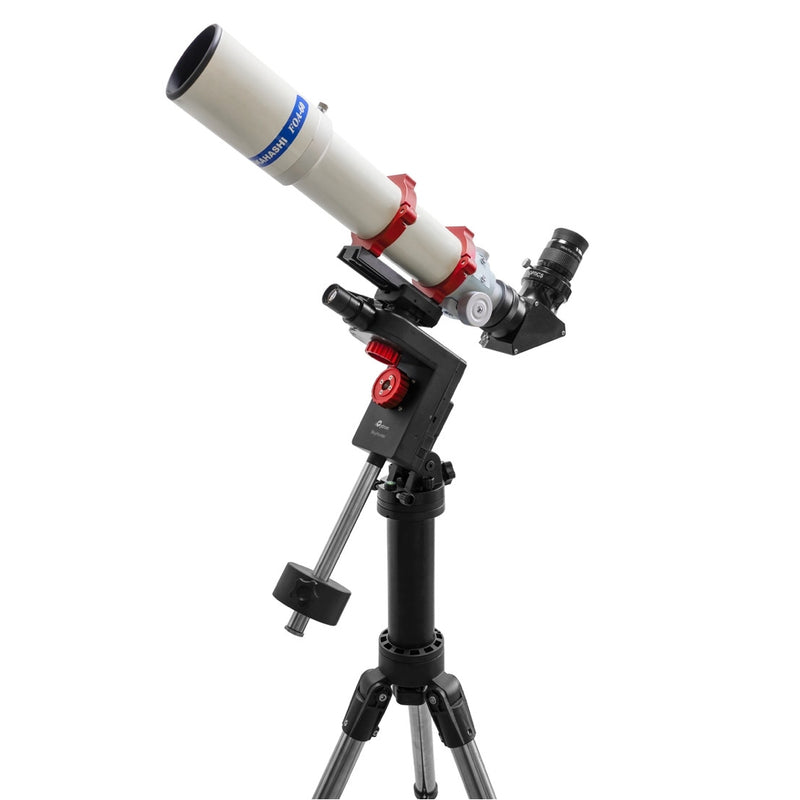

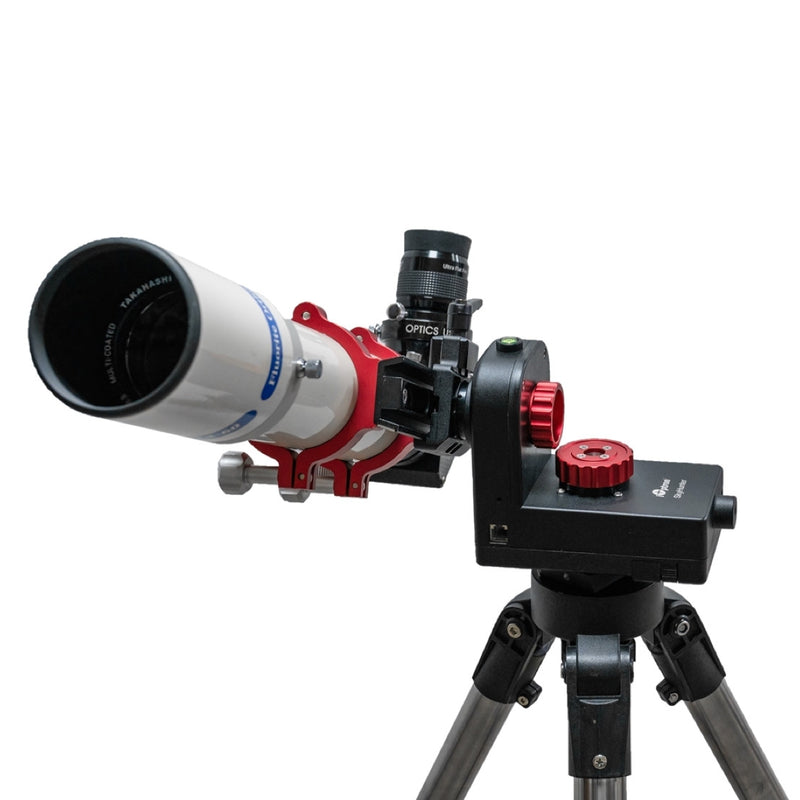

iOptron's new ultra compact EQ/AZ GoTo mount -- introducing The SkyHunterTM!

Fifteen years after releasing the innovational CubeTM AZ/EQ GoTo mount, the SkyHunterTM takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history. Weighing in at only 2.9 lbs (including internal rechargeable battery), the SkyHunter TM is capable of supporting an 11 lbs payload in both equatorial and alt-azimuth modes.

The SkyHunterTM mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.

The SkyHunterTM mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.

Features

  • Specialized Grab N’ Go GOTO EQ/AZ mount
  • Mount weighs 2.9 lbs (1.3kg)
  • Payload 11 lbs (5kg) (balanced, exclude CW)
  • Dual-axis servomotors with optical encoders
  • Tracking speed: solar, lunar, 1X, 1/2X, S/N
  • Operation in both northern and southern hemisphere
  • Vixen dovetail saddle
  • Built-in rechargeable battery for up to 10 hours of operation (20°C)
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari control
  • USB port for firmware upgrade and computer control
  • Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
  • Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
  • Counterweight: 3 lbs (1.35kg)
  • Attaches to a camera tripod with 3/8” or 1/4” threads
  • 1.25" Stainless steel tripod (#3221)
  • Optional carbon fiber tripod
  • Pier-extension (#8041)
  • One year limited warranty on mount, 90 day for battery



PACKAGE CONTENTS

  • SkyHunterTM GOTO EQ/AZ mount
  • EQ base
  • Stainless steel counterweight shaft
  • 3 lbs counterweight
  • MiniUSB charging cable
  • #3221 Tripod
  • #8041 Pier extension
  • One Year Limited Warranty (90 day on battery)
Mount Ultracompact GOTO EQ/AZ mount
Payload (Max.) 11 lbs (5kg), balanced
Mount weight 2.9 lbs (1.3kg) with battery
Structure material Metal frame structure
Motor drive Dual-axis DC servo motor with optical encoder
Transmission Synchronous belt
Tracking speed Solar, Lunar, Cel, 1/2 Cel, and N/S
Maximum slew speed 4.5°/sec (1080X)
Worm period 600 sec
RA/DEC worm wheel Φ77 mm, 144 teeth
Hand controller Yes (with optional 8410 HC)
Altitude adjustment range 0º ~ 80º
Azimuth adjustment range ±5º
Power Requirement Internal rechargeable battery
Battery type Li-Poly, 3.7V, 2000mAh
Duration of operation Up to 10 hours at 20ºC
Counterweigh Shaft Φ20mmX200mm, 3/8" thread, stainless steel
Counterweigh 3 lbs (1.3 kg)
Dovetail saddle Vixen-type
Body base connection Vixen dovetail, 3/8” socket
Autoguiding ASCOM compatible
Power charge port MiniUSB (5V)
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB)
Firmware upgrade Yes (via USB port)
Tripod 3221 Stainless Steel, optional carbon fiber tripod
Pier extension Φ80x190 mm
Operation Temperature -10ºC ~40ºC
Warranty One year limited (90 day on battery)
