How do I know if my telescope can ride on the NYX-88 without counterweights?
Add up the weight of everything on the saddle: optical tube, dovetail, rings, camera, guide scope and accessories. If the total is 14 kg (31 lbs) or less, the NYX-88 carries it without counterweights. Pegasus Astro notes that large, long tubes close to the limit, such as Newtonians, may need an extra 5 kg counterweight for smooth operation.
Do I always need to use counterweights with the NYX-88 mount?
No. For any payload up to 14 kg (31 lbs), counterweights are not required due to the high torque of the strain wave gears. You only need to add a counterweight shaft (M12 thread) and weights if your total payload exceeds 14 kg, which increases the mount's maximum capacity to 20 kg (44 lbs).
Can I use the NYX-88 bundle for GoTo observation without a laptop?
Absolutely. The bundle includes the NYX Hand Controller, a complete standalone controller for the mount. It features a 2.4-inch OLED screen and a database of over 30,000 objects. You can perform star alignment, select targets, and initiate GoTo slews entirely from the hand controller, making it perfect for PC-free visual observing or simple imaging.
What's the difference between using Wi-Fi and USB to control the NYX-88 mount?
The NYX-88 has both, and they can work at the same time. USB2 is a direct, wired connection to your computer. The 2.4 GHz Wi-Fi lets you control the mount wirelessly, for example from SkySafari or N.I.N.A. through ASCOM Alpaca. You can connect to the mount's own hotspot or join the mount to your existing Wi-Fi network as a client.
What kind of battery do I need to power the NYX-88 bundle in the field?
The mount runs on 12 to 14 V DC through its GX12 power input, with reverse polarity protection. It draws about 0.4 A idle, 0.5 A while tracking and 2 A while slewing. Choose a 12 V battery (sold separately) sized for the length of your night and for any other equipment you power from it.
How do I set up the NYX-88 mount for visual use in Alt-Az mode?
Level the tripod, using the mount's electronic leveller until pitch and roll read as close to 0° as possible. Set the mount's altitude (pitch) to 90 degrees, then select Altazimuth as the mount mode in the software or in the hand controller settings.
When should I add the optional half pier to the NYX-88 tripod?
Pegasus Astro calls the half pier essential for keeping your telescope from colliding with the tripod legs. The version for this carbon tripod (PEG-HP88-NYX-TRPD, sold separately) adds 18 cm (7") between the tripod and the mount head and includes all adapters and 3 rods.
What is the warranty period for the different components in the NYX-88 bundle?
The warranty periods for the components differ. According to the manufacturer's documentation, the NYX-88 mount head is covered by a 3-year warranty, while the NYX Hand Controller is covered by a 2-year warranty. Please refer to the official Pegasus Astro warranty policy for full details.
Is the NYX-88 bundle portable enough for travel?
Yes. The mount head weighs 5.0 kg and travels in its hard-shell carry case. The carbon fiber tripod weighs 2.0 kg, retracts to 65 cm and has its own carry bag.

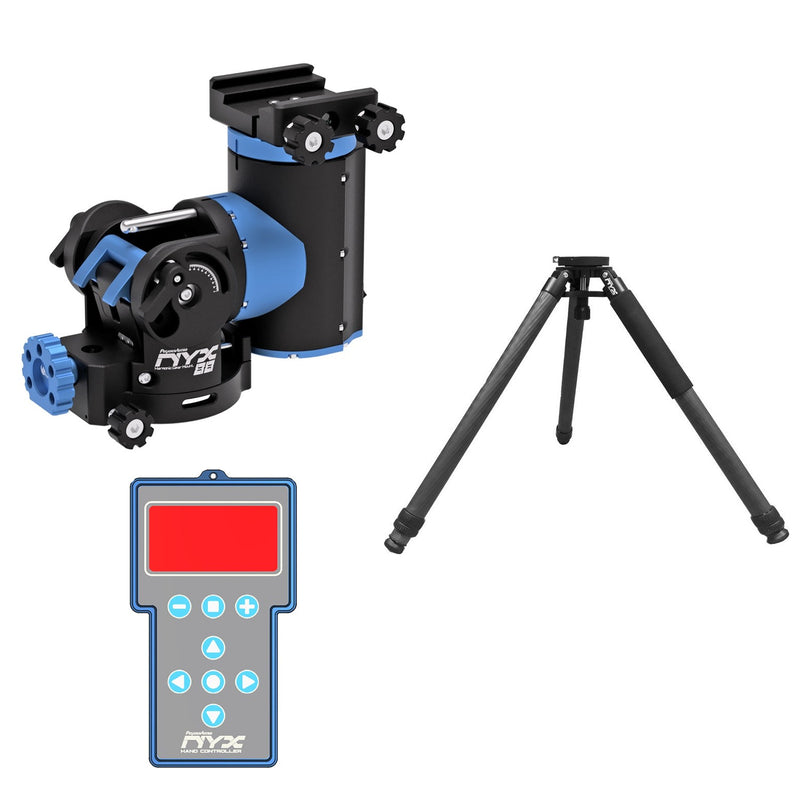

Does the bundle include everything I need to get started, or are other cables required?
The bundle is very complete. It includes the mount head, carbon tripod, hand controller, a 12V/5A power supply, a USB cable, and the RJ12 spiral cable for the controller. You will only need to provide a telescope, a 12V field battery if you're away from mains power, and any cables specific to your camera or other accessories.
