QHYCCD Adapter Kit - Combo D2

QHYCCD Adapter Kit - Combo D2

by QHYCCD
SKU QHY-020108
CA$81.00 - CA$81.00
CA$81.00
CA$81.00 - CA$81.00
CA$81.00
Price Match Policy!
  • Connects a Canon EF lens to QHYCCD color cooled cameras
  • Creates a rigid, secure imaging train
  • Essential for achieving precise back focus
  • Minimizes potential for optical tilt and flexure
  • Designed for compatibility within the QHYCCD ecosystem
Backordered
Request Stock Alert
Availability Info
Qualifies for FREE Shipping in Canada on orders over $500.
Vignetting Calculator

Will your imaging train vignette?

Check which filter and adapter sizes clear the sensor with the QHYCCD Adapter Kit - Combo D2, and how much light the corners lose.

Check vignetting
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Warranty

  • QHYCCD Adapter Kit - Combo D2

    The QHYCCD Adapter Kit - Combo D2 provides the components to connect a Canon EF lens to a QHYCCD color cooled camera such as the QHY600C-PH or QHY268C (version before 2023). It places the camera sensor at the 44.1mm back focus that Canon EF lenses require. Achieving this precise spacing is fundamental for capturing sharp, perfectly formed stars across the entire field of view.

    Securing the QHYCCD Imaging Train for Flex-Free Imaging

    In astrophotography, even microscopic shifts in the optical path can elongate stars and ruin an image. The QHYCCD Adapter Kit - Combo D2 uses QHYCCD's 6-screw and spacer system, which is more robust than a typical threaded connection, to hold the lens square to the sensor without the sag of thumbscrew or compression ring holders.

    • Correct Back Focus: Places your camera's sensor at the 44.1mm back focus Canon EF lenses need to reach infinity focus.
    • Eliminates Tilt: A screw-fixed connection provides a square, stable mount for the camera sensor, preventing tilted focal planes that result in one side of the image being out of focus.
    • System Rigidity: By securely locking components together, the kit prevents mechanical flexure as the telescope tracks across the sky, maintaining consistent focus and collimation throughout your imaging session.

  • What is the main purpose of the QHYCCD Adapter Kit - Combo D2?

    The primary purpose of the QHYCCD Adapter Kit - Combo D2 is to connect a Canon EF lens to a QHYCCD color cooled camera such as the QHY600C-PH or QHY268C (version before 2023), at the 44.1mm back focus Canon lenses require. It provides the specific spacing required to achieve correct back focus and ensures a rigid, secure mechanical connection to prevent image-degrading tilt or flexure.

    Why is precise back focus so critical for my QHYCCD camera?

    Canon EF lenses are designed to work at a very specific distance from the camera sensor (44.1mm). If this distance is even slightly off, you will see distorted stars, especially at the corners of your images. An adapter kit like the Combo D2 provides the exact combination of spacers and adapters needed to hit this distance perfectly, ensuring sharp stars across the entire frame.

    How does the QHYCCD Adapter Kit - Combo D2 help prevent image tilt?

    Image tilt occurs when the camera sensor is not perfectly perpendicular to the telescope's light path. This can be caused by sag in the focuser or loose connections. By using screw-fixed QHYCCD adapters and spacers, the QHYCCD Adapter Kit - Combo D2 ensures the camera is held rigidly and squarely, minimizing the risk of tilt and ensuring consistent focus across your entire field of view.

    What kind of accessories can I connect with a QHYCCD adapter kit?

    Combo D2 connects a Canon EF lens only. For other accessories QHYCCD offers separate kits, such as Combo D1 for a corrector that needs 55mm back focus and M48 threads.

    Is Combo D2 the right kit for imaging the Pleiades (M45) with a fast f/4 Newtonian?

    No. A fast Newtonian needs a coma corrector, and Combo D2 only sets the 44.1mm spacing for a Canon EF lens. For a corrector that needs 55mm back focus with M48 threads, Combo D1 is the kit for the same color cameras.

    Can I use the QHYCCD Adapter Kit - Combo D2 with an SCT and reducer for the Orion Nebula (M42)?

    No. Combo D2 sets the 44.1mm spacing for a Canon EF lens; QHYCCD does not list it for telescope reducers. An SCT reducer needs the spacing and thread its maker specifies, so check those before choosing QHYCCD adapters.

  • Compatibility QHY600C-PH, QHY268C (version before 2023), QHY168C, QHY247C, QHY128C, QHY410C, QHY367C; connects a Canon EF lens at 44.1mm back focus
    Kind Lens adapter kit (Canon EF)
    Telescope-side connection Canon EF lens mount
    Camera-side connection QHY 6-screw spacer flange (M3 screws)
    Optical length (added light path) 20.5 mm (44.1 mm back focus with the camera)

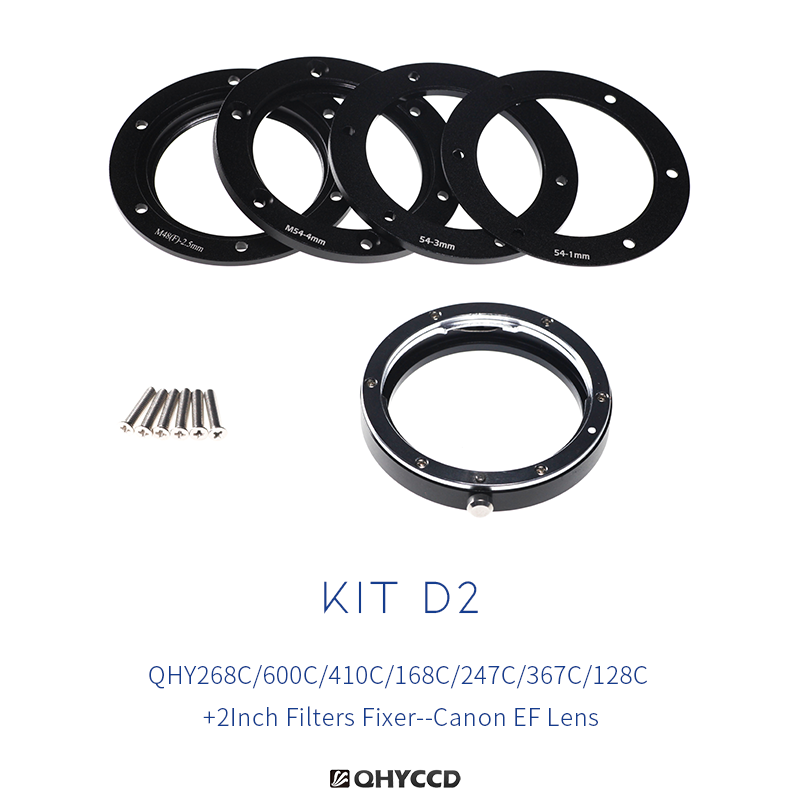

    • Kit Contents (10mm M54 Canon EF adapter, 4mm M54 screwed adapter, 2.5mm 2-inch filter fixer, 3mm spacer, 1mm spacer and eight 14mm M3 screws.)

      × 1

  • QHYCCD Warranty
