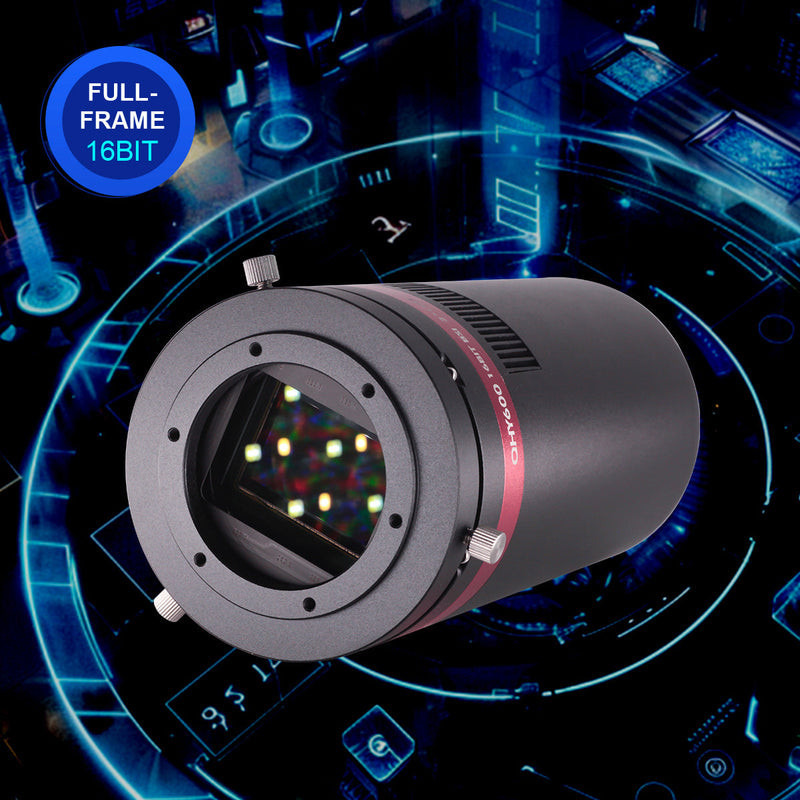

QHYCCD QHY600M PRO II Scientific Camera

61.17 MP Full-Frame BSI Sensor with Native 16-bit ADC

At the heart of the QHY600M Pro II is the Sony IMX455, a back-side illuminated (BSI) CMOS sensor with a massive 36mm*24mm imaging area. The 61.17 million 3.76µm pixels provide the resolution necessary to capture immense detail across wide fields of view, making it ideal for large mosaics or imaging with long focal length instruments. The native 16-bit A/D converter delivers a dynamic range of 65,535 grayscale levels, allowing you to capture subtle tonal variations in faint nebulosity and bright star cores within a single exposure.

Multi-Mode Readout: 1.1e- Noise and >80ke- Full Well

The QHY600M Pro II provides several user-selectable readout modes, allowing you to optimize camera characteristics for your specific target. High Gain Mode drops read noise to an exceptionally low 1.1e-, perfect for narrowband imaging or capturing faint signals in short exposures. For brighter targets or LRGB imaging, Photographic Mode offers a balanced >51ke- full well, while Extended Full Well Mode pushes capacity to over 80ke-, preventing saturated stars in dense clusters and preserving color data.

-35°C TEC Cooling and Zero Amplifier Glow

Data integrity is paramount, and the QHY600M Pro II employs a powerful dual-stage TEC cooler to suppress thermal noise. Capable of achieving a delta of -35°C below ambient for long exposures, the cooling system keeps dark current down to just 0.0022e-/pixel/sec at -20°C. An integrated anti-dew heater and humidity sensor protect the sensor window from condensation. Critically, the camera is engineered for zero amplifier glow, eliminating a common source of image artifacts and simplifying calibration and processing.

2x10Gbps Fiber, USB 3.0, and a 2GB DDR3 Buffer

A large 2GB DDR3 internal buffer ensures reliable, drop-free image transfer, even at high frame rates. While the USB 3.0 interface delivers a respectable 2.5 FPS at full 16-bit resolution, the QHY600M Pro II is equipped for professional data acquisition with dual 10-Gigabit fiber optic ports and dual Camera Link ports. These high-speed interfaces enable faster frame rates (up to 3.5 FPS at 16-bit in PCIE mode) and support long-distance, noise-immune cable runs essential for remote observatories and scientific research.

Shorter 14.5mm Back Focus Body Style

This version of the QHY600M Pro II features the shorter body style, providing a minimal back focal length of 14.5mm. This compact design is a significant advantage for imagers using optical systems with limited back focus, such as refractors with field flatteners/reducers or HyperStar configurations. The reduced physical depth leaves more room in the optical train for accessories like filter wheels, off-axis guiders, and adaptive optics units without risk of being unable to reach focus.

QHY600 Pro II vs. ZWO ASI6200MM Pro: Connectivity and Readout Modes

Both the QHY600 Pro II and the ZWO ASI6200MM Pro are built around the same excellent Sony IMX455 full-frame sensor, offering identical resolution and pixel scale. The ZWO ASI6200 is a highly regarded camera with a robust software ecosystem and a smaller physical footprint.

• Connectivity: The QHY600 Pro II's primary advantage is its professional interface options. While the ASI6200 relies solely on USB 3.0, the QHY600 adds dual 10Gbps fiber optic and Camera Link ports, making it suitable for scientific applications requiring higher speeds or longer cable runs.
• Image Buffer: The QHY600 Pro II incorporates a 2GB DDR3 buffer, significantly larger than the 256MB buffer in the ASI6200MM Pro. This provides greater protection against dropped frames during data transfer, especially over slower USB connections.
• Readout Modes: QHY offers multiple, distinctly named readout modes (Photographic, High Gain, Extended Full Well) that allow users to precisely tailor noise and full well performance to their target.
