Shelyak Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)
Shelyak Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)
Shelyak Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)

Shelyak Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)

by Shelyak
SKU SHK-SE0289
CA$106.00 - CA$106.00
CA$106.00
CA$106.00 - CA$106.00
CA$106.00
Price Match Policy!
  • Dual Slit Widths: 7µm and 10µm
  • Substrate Dimensions: 12 x 8 x 2 mm
  • Material: Heat-Resistant Eagle XG Glass
  • Wavelength Range: 350 nm to 1000 nm
  • Coating: Anti-Reflection
  • For Sol'Ex & SUNSCAN Spectroheliographs
Backordered
Request Stock Alert
Availability Info
Qualifies for FREE Shipping in Canada on orders over $500.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Warranty

  • Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)

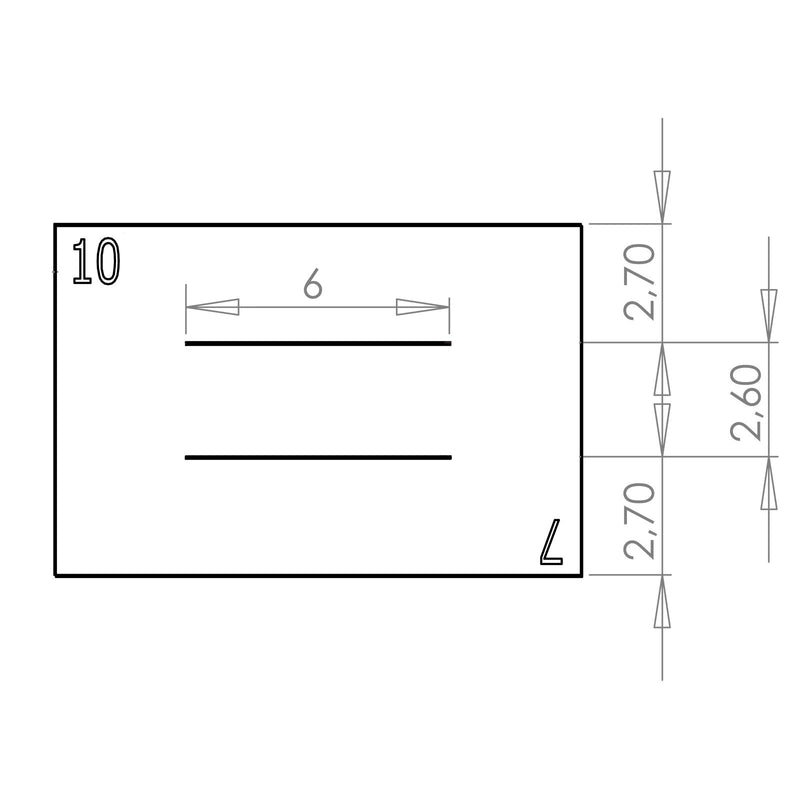

    The Sol’Ex / SUNSCAN GEN2 2-position slit features two parallel slits, 7µm and 10µm wide, on a single 12 x 8 mm glass blade. This second-generation design uses a 2 mm thick, heat-resistant Eagle XG substrate with an anti-reflection coating effective from 350 to 1000 nm. The narrower 7µm slit is specifically included for high-precision applications, such as solar magnetic field measurement, giving spectroheliograph builders a critical optical component.

    Dual 7µm and 10µm Slits for High-Resolution Solar Work

    This GEN2 component incorporates two selectable slits on a single substrate, allowing you to switch between different resolutions without changing parts. The 10µm slit is excellent for general solar spectroscopy, while the finer 7µm slit enables more demanding, high-precision studies where greater spectral resolution is required. This narrower aperture is particularly effective for projects like measuring solar magnetic fields via the Zeeman effect.

    2mm Thick Eagle XG Substrate with 350-1000nm AR Coating

    The slit is fabricated on a specialized Eagle XG glass substrate, chosen for its thermal resistance and excellent transmission across a wide 350 to 1000 nm wavelength range. The 2 mm thickness makes the 12 x 8 mm blade robust and easy to handle. It also simplifies cleaning, as both sides can be safely wiped with absorbent cotton and water. The face opposite the slit is anti-reflection coated to maximize light throughput and minimize internal reflections.

    Designed for Sol’Ex, SUNSCAN, and Custom Spectrographs

    While designed as a direct upgrade for the Sol’Ex and SUNSCAN spectroheliographs, this 2-position slit is also available for your own custom instrument projects. Please note that the slit is delivered without a holder. For Sol’Ex users, the 3D printing files and instructions for the support are available in the project documentation; for custom builds, you will need to design your own mounting solution.

  • What is the advantage of the GEN2 2-position slit for a Sol'Ex instrument?

    The primary advantage is having two slit widths on a single component. You can use the 10µm slit for brighter, general-purpose solar viewing and the 7µm slit for high-resolution studies, such as measuring magnetic fields, without needing to disassemble the instrument to swap slits.

    Do I need to buy a separate holder for this Sol’Ex / SUNSCAN slit?

    Yes, the slit is delivered without its 3D-printed support. You must fabricate the holder yourself. For Sol'Ex and SUNSCAN users, the necessary files and instructions are provided in the official instrument documentation. If you are using this for a custom project, you must design and create your own support.

    How do I clean the GEN2 2-position slit?

    The 2 mm thick glass substrate is relatively robust. You can safely clean both sides using a soft, absorbent cotton ball lightly moistened with water. This helps remove dust and residue without damaging the slit or the anti-reflection coating.

    Which slit on the Sol'Ex / SUNSCAN GEN2 slit is better for measuring the Zeeman effect?

    The narrower 7µm slit is designed for high-precision applications like measuring the Zeeman splitting of spectral lines. This requires higher spectral resolution to resolve the small wavelength shifts caused by solar magnetic fields, making the 7µm slit the ideal choice for this type of scientific work.

    Can I use this slit to study the Fraunhofer lines in the solar spectrum with my custom spectrograph?

    Absolutely. The slit's excellent transmission from 350 to 1000 nm covers the entire visible spectrum and beyond, making it perfect for studying the solar continuum and its many Fraunhofer absorption lines. You would need to design a compatible holder for your specific instrument.

    Is the GEN2 2-position slit compatible with older Sol'Ex and SUNSCAN builds?

    Yes, this is a compatible upgrade for existing Sol'Ex and SUNSCAN instruments. However, you will need to print the corresponding GEN2 holder for it, as the mount design may have changed from earlier versions. Always refer to the latest project documentation for the correct 3D printing files.

  • Product 2-Position Slit GEN2
    Slit Widths 7 µm and 10 µm
    Compatibility Sol’Ex, SUNSCAN, Custom Projects
    Substrate Material Eagle XG Glass
    Substrate Dimensions 12 x 8 mm
    Substrate Thickness 2 mm
    Effective Wavelength Range 350 - 1000 nm
    Coating Anti-Reflection (one side)
    Holder Not included (requires 3D printing)

    • Sol’Ex / SUNSCAN 2-position slit 7 – 10 µm (GEN2)

      × 1

  • Shelyak 1-Year Warranty
