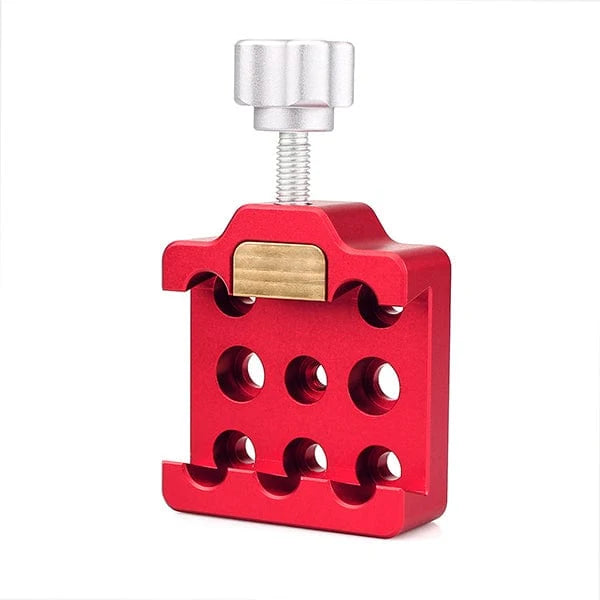

SVBONY Red Medium Dovetail Clamp
The SVBONY Red Medium Dovetail Clamp (F9144C) provides a secure, lightweight connection point for your telescope, supporting up to a 10kg payload with its aluminum alloy construction. Weighing just 193g, this Vixen-style clamp features a 39.5mm top opening and a 45mm bottom opening, with a versatile mounting base that includes M6, 1/4", and M8 holes spaced 35mm apart.
10kg Capacity and Vixen-Style Grip
Made of aluminum alloy, the F9144C clamp offers a rigid, twist-free platform capable of holding telescope setups weighing up to 10kg. The clamp opening is 39.5mm at the top, 45mm at the bottom and 12mm deep, the size class of Vixen-style dovetail bars.
Brass screws and a locking screw secure the dovetail bar. Brass is softer than steel, so it is kinder to the bar's finish while still giving a stable connection.
Versatile M6, M8, and 1/4" Hole Pattern

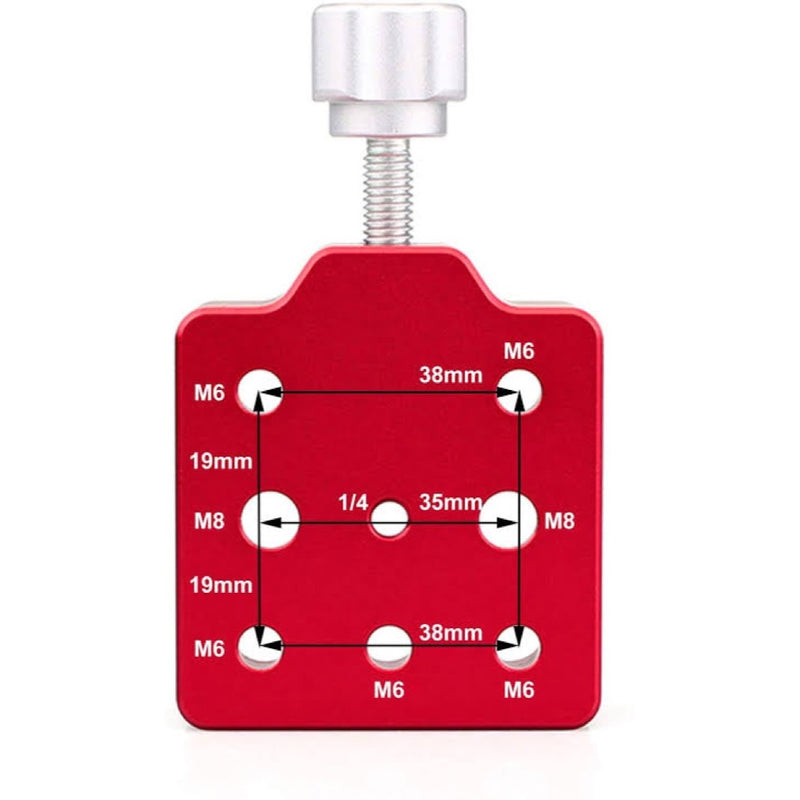

The base of the clamp is pre-drilled with a universal hole pattern to attach to a wide variety of mounts, tripod heads, and plates. It includes M6 holes, a 1/4" hole for photo tripods, and two M8 holes.
The two M8 mounting holes are spaced 35mm apart center to center, for direct attachment to mount saddles and accessories with matching holes. The clamp also pairs with the SVBONY F9143 dovetail plate, sold separately.
-
What is the maximum payload of the SVBONY F9144C Dovetail Clamp?
The SVBONY F9144C has a specified load capacity of 10kg (approximately 22 lbs). This makes it suitable for small-to-medium refractors, catadioptric telescopes, and camera/lens combinations for astrophotography.
Will the SVBONY F9144C clamp damage my dovetail bar?
No. The clamp uses a brass locking screw. Brass is a softer metal than the aluminum typically used for dovetail bars, so it is less likely to mark your equipment when tightened.
What type of dovetail bars is the SVBONY F9144C compatible with?
This clamp is designed for the Vixen-style (V-style) dovetail standard. It is not compatible with the wider Losmandy-style (D-style) bars. The clamp's opening measures 39.5mm at the top and 45mm at the bottom.
Can I mount the SVBONY F9144C clamp directly to a photo tripod?
Yes. The clamp base has a 1/4" hole, the standard screw size for photographic tripods and heads. This allows you to mount a small telescope or camera with a Vixen-style bar directly onto a photo tripod for wide-field viewing or imaging.
I have a mount with two M8 bolts spaced 35mm apart. Will the SVBONY F9144C clamp fit?
Yes. The clamp has two M8 holes with centers 35mm apart, so it bolts straight on.
Are mounting screws included with the SVBONY F9144C clamp?
No mounting screws are listed in the box, so plan to supply your own. You will need to provide the appropriate M6, M8, or 1/4" screws based on the requirements of your specific mounting hardware.
-
| Brand |
SVBONY |
| Model |
F9144C |
| Color |
Red |
| Material |
Aluminum alloy |
| Load Capacity |
10kg |
| Dovetail Opening, Top |
39.5mm |
| Dovetail Opening, Bottom |
45mm |
| Dovetail Depth |
12mm |
| Locking Screw Material |
Brass |
| Mounting Holes |
M6, 1/4" and two M8 holes (M8 hole centers 35mm apart) |
| Net Weight |
193g |
-
-
SVBONY Red Medium Dovetail Clamp
× 1
-
SVBONY Warranty
