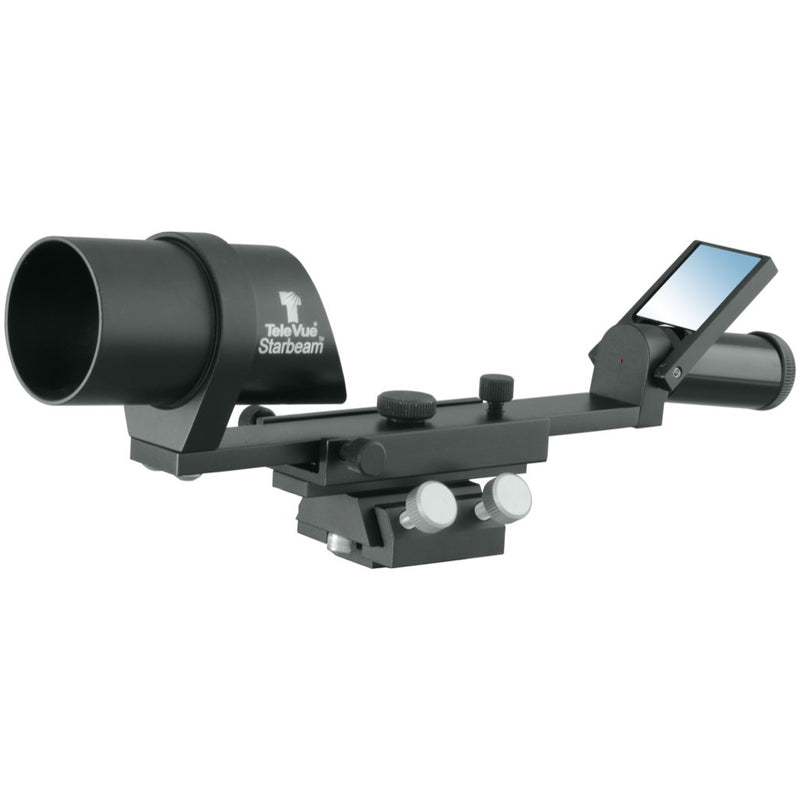

Tele Vue Starbeam- Tele Vue Quick Release base

The Red Star Projection

At the heart of the Starbeam is a beam-splitting mirror/lens that projects an LED-illuminated pinhole to infinity. This is not a simple laser pointer dot. The Starbeam is prefocused (collimated) and designed so that little image shift is visible between a real star and the projected red star overlaying it. With its 39mm aperture, the projected red star can be seen at any distance behind the beam splitter, whether 2 inches or 2 feet.

A Large, Unobstructed Viewing Window

The Starbeam's 39mm clear aperture glass window acts as an optical combiner, reflecting the red star into your eye while allowing the light from the night sky to pass through undisturbed. This large, open view allows you to keep both eyes open, preserving your situational awareness of constellations and bright guide stars. The result is a more natural and less fatiguing aiming process, as you are not squinting through a narrow tube but rather looking through a transparent frame at the sky itself.

Versatile Flip-Mirror for Comfortable Viewing

A signature feature of the Starbeam is its integrated flip mirror. For targets high overhead, you can flip the mirror into the light path to view the projected star from a comfortable 90-degree angle, just like a star diagonal. When aiming closer to the horizon, flip the mirror down for a straight-through view. This versatility means you can always find a comfortable head position, a small but significant detail that makes long observing sessions more pleasant, especially with refractors or SCTs.

Adjustable Brightness for Any Target

The LED illuminator's brightness is fully adjustable, a crucial feature for maintaining night vision. When aiming at faint deep-sky objects, you can dim the red star until it is just barely visible, preventing it from overwhelming the delicate view of a dim galaxy or nebula. For brighter twilight skies or bright planets, you can increase the brightness so the red star stays easy to see. This control ensures the finder is perfectly matched to your target and observing conditions.

The Tele Vue Quick Release Base for Stability

This version of the Starbeam includes the Tele Vue Quick Release Base (QRB-1002), a robust dovetail system that ensures your finder returns to alignment every time you reattach it. The bracket bolts to the channel of your Tele Vue mount ring, and the Starbeam's dovetail slides into it and locks with two thumb screws. This is a significant workflow improvement, allowing you to remove the Starbeam for transport or storage and re-mount it in seconds without needing to perform a full realignment.

Practical Use and Honest Limitations

Imagine you're hunting for M81 and M82 in Ursa Major. With both eyes open, you look through the Starbeam's window and see the entire Big Dipper. You place the red star on the pointer star Dubhe, then move it along the diagonal line towards Phecda, extending that line an equal distance until you land in the correct patch of sky. Your main eyepiece now shows the tell-tale glow of the galaxy pair, acquired in under a minute without ever consulting a chart at the scope.

The Starbeam's primary limitation, however, is its dependence on naked-eye stars. In heavily light-polluted skies or on moonless nights in star-poor regions, finding the guideposts for your hop can be difficult. For hunting extremely faint objects that require identifying dim guide stars, a traditional magnifying finderscope remains a better tool. The Starbeam is an aiming device, not a light-gathering one.
