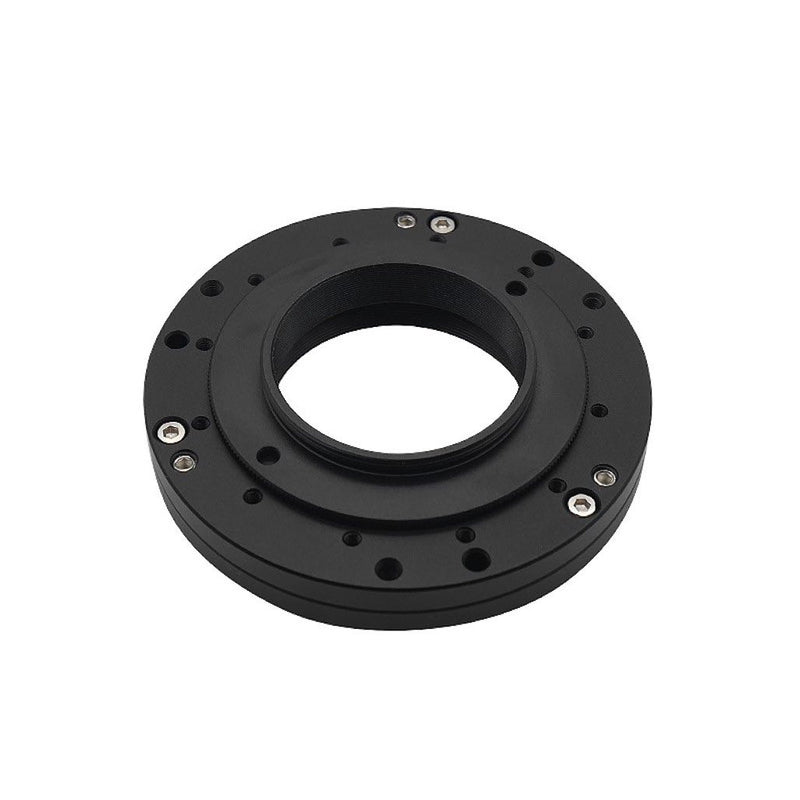

ZWO T2 Tilter II

ZWO T2 Tilter II

by ZWO
SKU ZWO-T2-Tilter-II
CA$67.00 - CA$67.00
CA$67.00
CA$67.00 - CA$67.00
CA$67.00
Price Match Policy!
  • Used to Fine-Tune the Camera's Imaging Plane
  • Used to Eliminate Newton Rings During H-Alpha Solar Imaging
  • T2 (M42*0.75 thread) on both sides.
  • Compatible with all ASI cameras except ASI071, ASI2600, and ASI6200.
  • Thickness of 2mm
2 in stock
Qualifies for FREE Shipping on orders over $500.
  • Description
  • Diagrams & Ressources
  • In the Box

  • ZWO T2 Tilter II - Overview

    ZWO T2 Tilter II - Overview

    The ZWO T2 Tilter is a precision tool designed to eliminate Newton rings during H-alpha solar imaging and to fine-tune the camera’s imaging plane. With its enhanced design, multiple screw holes allow seamless compatibility with ZWO 2” EFW filter wheels and versatile astrophotography setups.

    Adjustable Design

    Equipped with six bolts to fine-tune the sensor plane for improved image quality.

    Ideal for eliminating Newton rings in H-alpha solar imaging.

    Enhanced Compatibility

    Interface: T2 (M42*0.75 thread) on both sides.

    Compatible with all ASI cameras except ASI071, ASI2600, and ASI6200.

    Compact Build

    Main Body Dimensions: Diameter 78mm, thickness 11mm without the T2-T2 adapter.

    T2-T2 Adapter Dimensions: 2mm thickness for flexible connections.

    Versatile Applications

    Suited for cooled cameras such as ASI294, ASI1600, ASI183, ASI533 (no T2-T2 adapter required).

    Non-cooled cameras like ASI178, ASI290, ASI224, ASI120 require the T2-T2 adapter for proper connection.

    Connection Method - Cooled Cameras

    Cooled camera: ASI294/ASI1600/ASI183/ASI533

    Connection Method - Cooled Cameras Connection Method - Cooled Cameras

    Connection Method - Non-Cooled Cameras

    Non-Cooled camera: ASI294/ASI1600/ASI183/ASI174

    These cameras do not need to connect to the T2-T2 adapter

    Connection Method - Non-Cooled Cameras

    Connection Method - Non-Cooled Cameras

    Non-Cooled camera: ASI178/ASI290/ASI224/ASI120

    These cameras need to connect to the T2-T2 adapter first.

    Connection Method - Non-Cooled Cameras Connection Method - Non-Cooled Cameras
  • Mechanical Drawing
    • ZWO T2 Tilter II - T2 Tilter

      T2 Tilter

      × 1

    • ZWO T2 Tilter II - T2-T2 Adapter

      T2-T2 Adapter

      × 1

    • ZWO T2 Tilter II - Hexagon Wrench

      Hexagon Wrench

      × 1

    • ZWO T2 Tilter II - Screws

      Screws

      × 6
