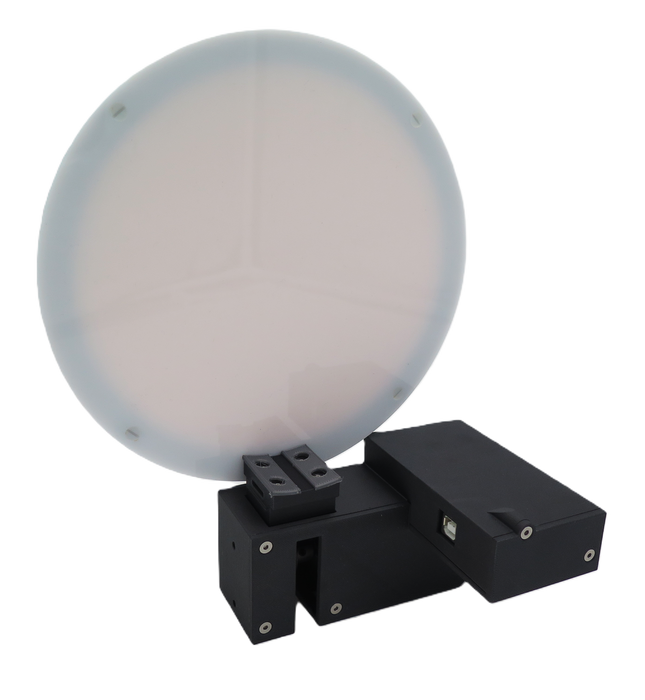

Optec Alnitak Flip-Flat 270 Flat Fielder

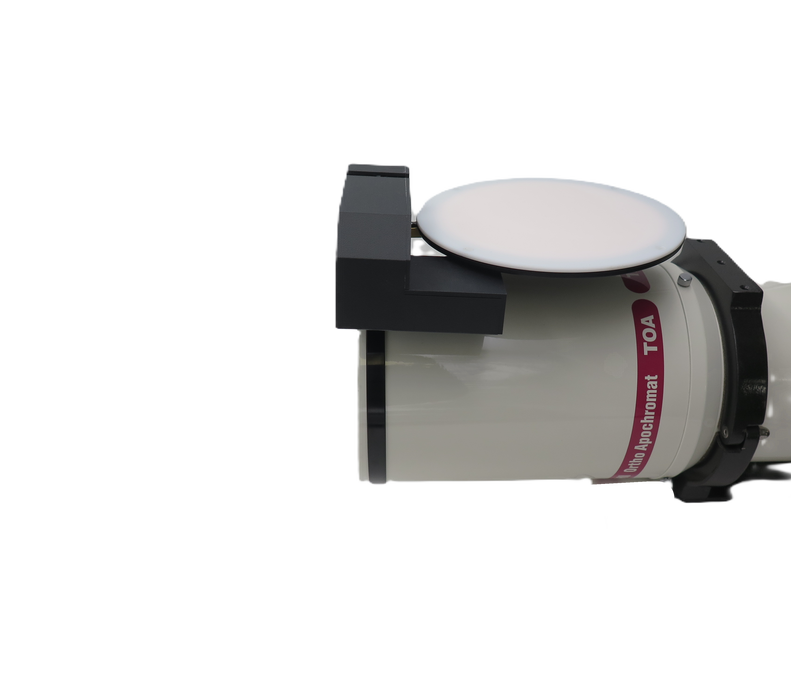

Optec has partnered with Chris White of Overcast Observatory to re-design the Flip-Flat electroluminescent calibration panel mechanical design. The new Alnitak Flip-Flat 270 design allows a full 270-degree rotation of the flat field lamp panel to rest against the side of the telescope OTA tube.

Available in two sizes the Flip-Flat 270 (stk# 19053) works with OTA dew shields up to 7-5/8" (194mm) while the Flip-Flat 270+ (stk# 19054) will cover an 8-1/8" (206mm) dew shield. Both include the time tested inverter electronics and 167mm EL lamp of the Gen2 Alnitak Flip-Flat.

The same mechanical design can be ordered in the Flip-Mask or Remote Dust Cover variants. In addition,

Overcast Observatory can design custom 3D printed mounting rings to match most any telescope tube diameter. This replaces the industrial zip ties included with every Flip-Flat sold through Optec.

With hundreds of Flip-Flats already in the field being used by satisfied customers, we’re confident that our product continues to meet the needs of discriminating astro-imagers around the world.

The Flip-Flat employs advanced electroluminescent lamp panel technology to provide a uniform source of illumination for the production of high quality flat field frames necessary for serious astroimaging and photometric work. With the Flip-Flat, on-demand flat fields with uniformity errors less than 1% are now possible.

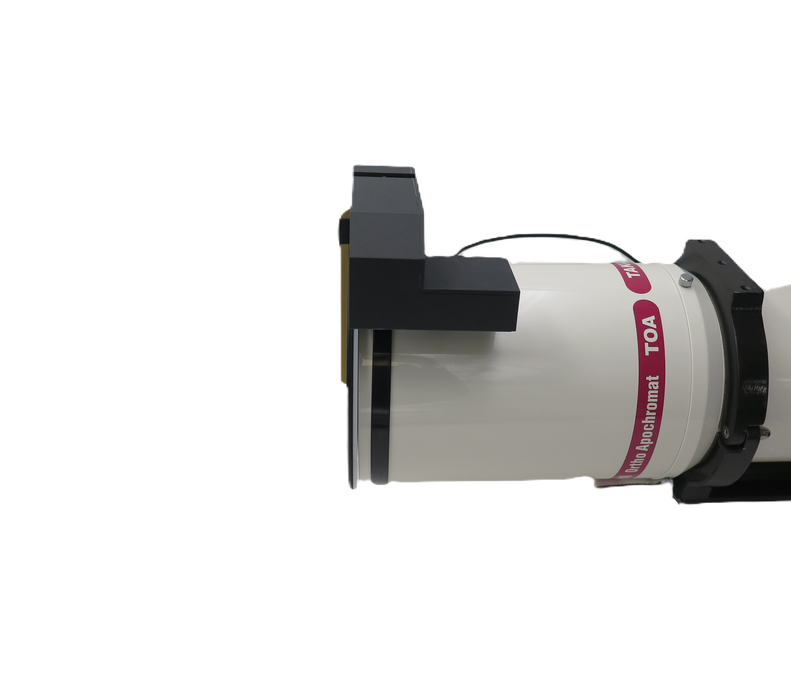

In addition to providing excellent flat fields, the Flip-Flat protects the objective lens of the telescope from dust that typically plagues remote installations where the user cannot manually replace the lenscap after an imaging session. The Flip-Flat is easily mounted to the front of any telescope tube (or rigid dewshield) with an OTA outside diameter between 4" (100mm) and 8-1/8" (206mm). The Flip-Flat is attached to the telescope OTA with industrial nylon zip straps and easily removable for transport and storage.

A simple Windows interface provides the ability to open and close the Flip-Flat and turn on the light source. The intensity of the light can be adjusted to one of 255 levels.

IMPORTANT: Note that the diameter of the fully illuminated lamp for each of the Flip-Flat models is 6.7" or 170mm, regardless of the model purchased. To accommodate the smaller 4" to 6" OTA's, we add a spacer to the mounting bracket which better centers the lamp over the OTA. For the larger OTA, the bracket is machined down and an oversized ring is added to block any stray light from interfering with the flat lamp.
