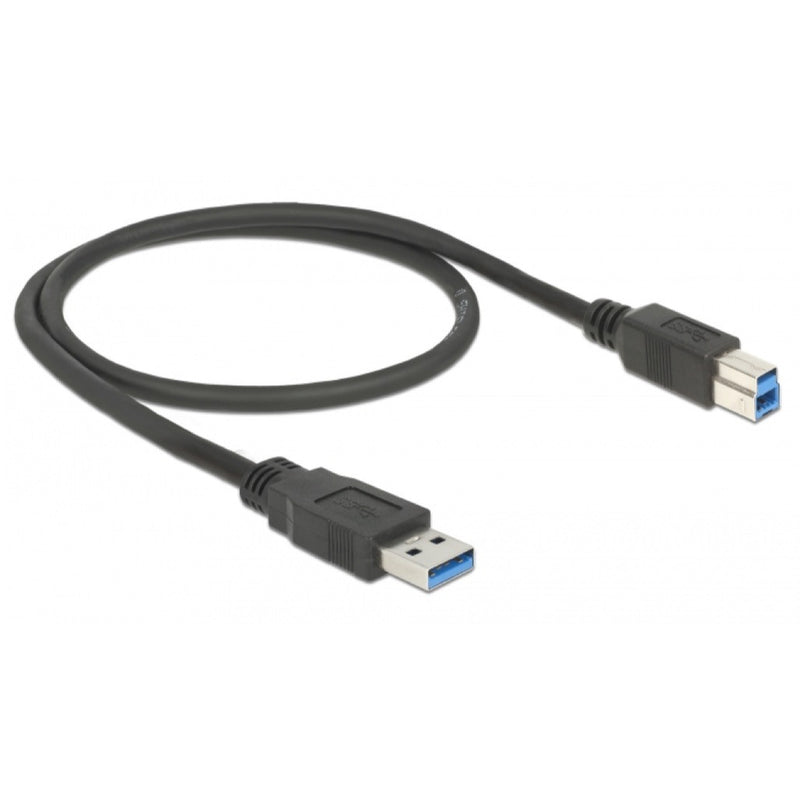

Pegasus Pack of 2x USB3.0 Type-A male to USB3.0 Type-B Male Cables- 0.5m

Pegasus Pack of 2x USB3.0 Type-A male to USB3.0 Type-B Male Cables- 0.5m

by Pegasus Astro
SKU PEG-USB3B-05M
CA$20.00 - CA$20.00
CA$20.00
CA$20.00 - CA$20.00
CA$20.00
Price Match Policy!
  • Pack of 2 USB 3.0 Type-A to Type-B Cables
  • Data Transfer Rate: Up to 5 Gbit/s
  • Length: 50 cm (0.5 m)
  • Conductor Gauge: 28 AWG Data / 24 AWG Power
  • Ideal for close-range device connections
5 in stock
Qualifies for FREE Shipping in Canada on orders over $500.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Warranty

  • Pack of 2 x USB 3.0 Type-A to Type-B Cables (0.5 m)

    This pack of two USB 3.0 Type-A to Type-B cables provides a high-speed, reliable connection for your astronomy cameras, external hard drives, and other peripherals. With a SuperSpeed data transfer rate of up to 5 Gbit/s, these cables ensure rapid image downloads and smooth device operation. The robust construction features a 24 AWG power conductor to deliver stable voltage to your devices, and the short 50 cm length is perfect for minimizing cable drag and clutter on your telescope rig.

    High-Speed 5 Gbit/s USB 3.0 Connection

    Achieve the full data throughput your modern astronomy camera is capable of. These cables adhere to the USB 3.0 specification, delivering a maximum data transfer rate of 5 Gbit/s—ten times faster than USB 2.0. This speed is critical for planetary imaging, where you're capturing thousands of frames in a short time, and for downloading large deep-sky images without a long wait.

    50 cm Length and 24 AWG Power for Reliable Connection

    Designed for on-telescope use, the 50 cm length minimizes the risk of snags and keeps your setup tidy. Shorter cable runs reduce the chance of signal degradation, ensuring a stable connection throughout an imaging session. The cable is built with a heavier 24 AWG gauge for the power lines and 28 AWG for data, providing consistent and reliable power to your camera or accessory, which is crucial for preventing dropped frames and connection issues.

  • What are these 0.5m USB 3.0 Type-B cables typically used for in astronomy?

    Their most common use is connecting a primary astronomy camera (which often has a USB 3.0 Type-B port) to a USB hub or mini-PC mounted on the telescope. The short 50 cm length is ideal for this, as it prevents long, dangling cables that can cause drag, snags, or tracking errors as the mount moves.

    Why is the 24 AWG power conductor important for these USB 3.0 cables?

    A lower American Wire Gauge (AWG) number means a thicker wire. The 24 AWG power conductor in this cable is more substantial than in many standard USB cables, allowing it to deliver more stable voltage and current to your connected device. This is critical for power-sensitive equipment like cooled CMOS cameras, preventing performance issues caused by voltage drop.

    Will these USB 3.0 cables work with my USB 2.0 camera or port?

    Yes, USB 3.0 is backward-compatible with USB 2.0. However, if you connect this cable to a USB 2.0 device or port, the data transfer speed will be limited to the USB 2.0 maximum of 480 Mbit/s. To get the full 5 Gbit/s speed, both the device and the port must be USB 3.0 compliant.

    How do I connect my ZWO or QHY camera to a Pegasus Astro Powerbox using these cables?

    You would connect the USB 3.0 Type-B (square-style) male end of the cable to the corresponding port on your astronomy camera. The other end, the USB 3.0 Type-A male connector, would plug into one of the powered USB 3.0 ports on your Pegasus Astro Powerbox or another powered USB hub on your rig.

    Is a 50 cm cable long enough for use with an 8" SCT on an EQ6-R Pro mount?

    A 50 cm cable is generally perfect for this scenario if you have a USB hub or computer mounted on the optical tube or dovetail bar. It allows for a clean connection from the camera to the hub without excess cable. If your control computer is on the ground or a tripod tray, you will need a much longer "active" USB 3.0 extension cable running from the hub down to the PC.

    Why does this come in a pack of two cables?

    Receiving two cables ensures you always have a spare on hand during an imaging night. A faulty cable can end an observing session unexpectedly, so having a tested backup is a critical part of any astrophotographer's field kit.

  • Specification USB 3.0
    Connector 1 USB 3.0 Type-A Male
    Connector 2 USB 3.0 Type-B Male
    Data Transfer Rate Up to 5 Gbit/s
    Cable Diameter 5.5 mm
    Conductor Gauge 28 AWG (Data) / 24 AWG (Power)
    Length 50 cm / 0.5 m
    Colour Black

    • 0.5m USB 3.0 Type-A to Type-B Cable

      × 2

  • Pegasus Astro 2-Year Warranty
