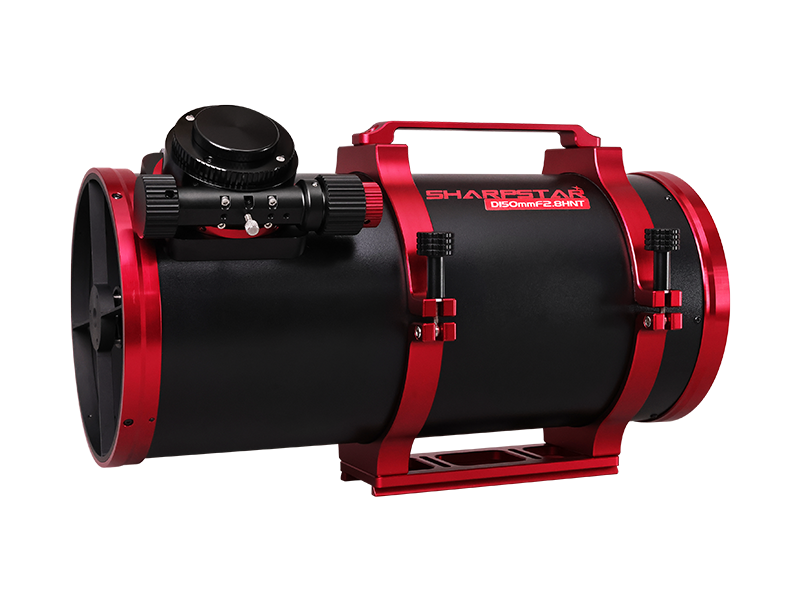

SharpStar 150mm f/2.8 HNT Hyperbolic Newtonian Astrograph

SharpStar 150mm f/2.8 HNT Hyperbolic Newtonian Astrograph

by SharpStar Optics
SKU SSO-15028HNT
CA$2,667.00 - CA$2,667.00
CA$2,667.00
CA$2,667.00 - CA$2,667.00
CA$2,667.00
Credit available from affirm logo
Availability:
Backordered
Contact us to know when we will receive our next ones!

Free Shipping in Canada

More information

Price Match

Found a better price? Contact us!

The SharpStar 15028HNT is our latest product and development of super-fast focal ratio, hyperboloid and Newton reflecting telescope, which makes up the domestic gap in this field. Hyperboloid is much more complicated than traditional paraboloid, no matter in development, manufacture or detecting requirements. When compared to other similar products on the market, The SharpStar 15028HNT is in the leading position. Carbon fiber was used to create the lens barrel material, which is beautiful, durable and lightweight. It also provides best thermal stability by using Pyres glass.

The SharpStar 15028HNT provides a very good reflectivity (over 96%) thanks to the enhanced- Aluminium coating. The secondary cross is one-time molded, to ensure firm and hard to deform. The use of a precision 2.5" R.P. focuser offers larger payload and a stronger hold, so that your focuser will not slip when using heavy-duty observation accessories or camera.

The SharpStar 15028HNT is equipped with all CNC aluminum parts and a novelty handle, which enables the lifting of its mechanical quality and appearance to a new level, so that the overall product can more closely meet the needs of astronomers.
The SharpStar 15028HNT features a three-piece image corrector that helps to achieve full-frame photography and excellent perimeter dimming control. The focal plane is 55 mm, plus an M48X0.75 thread at the end of the focuser, the enormous back focal distance provides ample space for any visual or photographic equipment.

Specifications

Aperture: 150mm
Focal Length: 420mm
Focal Ratio: f/2.8
Primary Mirror Type: Hyperboloid
Mirror Material: H-PZ33 (similar as Pyrex glass)
Corrector Type: Triplet air spaced
Short axis diameter of secondary mirror: 70mm
Fully illuminated image circle: 44mm
Actual field: 6°
Main tube material: Carbon fiber
Main tube outer diameter: 195mm
Total length of telescope: 445mm
Net weight: 4.45kg
Gross weight: 5.95kg (including tube cap, handle, tube rings and dovetail plate)
Resolution: 0.77 arc-seconds
Focuser: 2.5" R&P precision Focuser
Visual Limiting Star Magnitude: 12.7
Focal plane: 55mm
