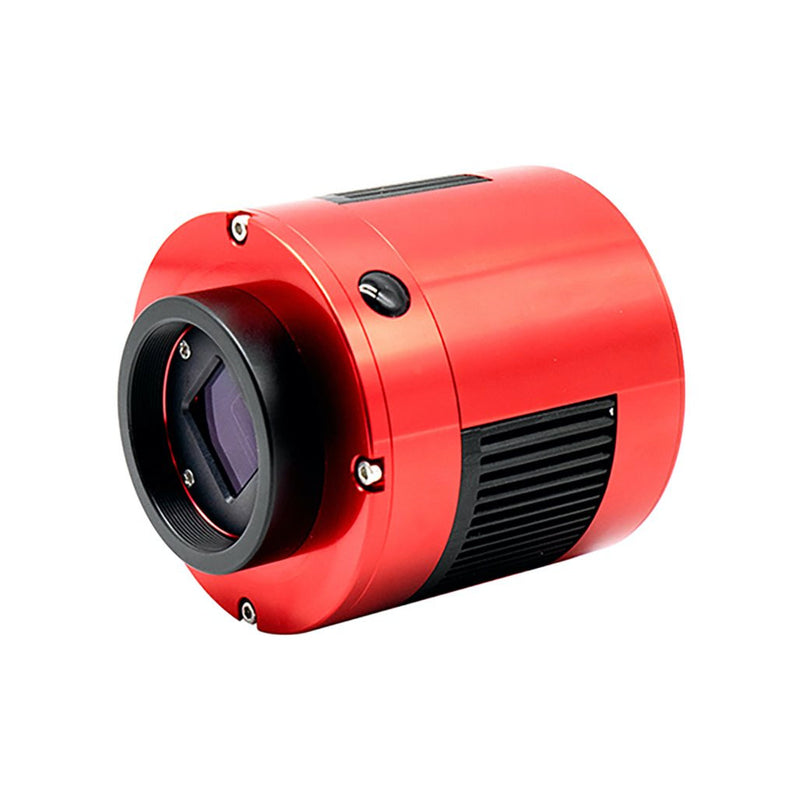

ZWO ASI533MC Pro Color

Sony IMX533 Square Sensor

At the heart of the ASI533MC Pro is Sony's IMX533, a 9-megapixel back-illuminated color CMOS sensor. Its 1-inch square format is a perfect match for the corrected image circles of popular refractors, Rowe-Ackermann Schmidt Astrographs (RASAs), and Schmidt-Cassegrains with reducers. This means every one of the 3008x3008 pixels is used to capture sharp, well-illuminated data, eliminating the wasted frame area common with rectangular sensors.

The back-illuminated architecture provides high quantum efficiency, while the 3.76µm pixels offer a good balance of resolution and sensitivity for a wide range of focal lengths. On a target like the Rosette Nebula with an 80mm refractor, this sensor geometry allows you to frame the entire structure without cropping, capturing the faint outer petals and central star cluster with high detail and rich color in a single shot.

Two-Stage TEC Cooling System

Deep-sky imaging relies on long exposures, and the primary enemy of a clean long exposure is thermal noise. The ASI533MC Pro integrates a two-stage thermoelectric cooler (TEC) capable of reducing the sensor's temperature to 35°C below the ambient air temperature. This aggressive cooling dramatically lowers dark current, the thermal signal that builds up over time and can overwhelm faint details.

The practical benefit is a significant improvement in your signal-to-noise ratio. Images taken on a warm summer night will appear as clean as those from a cold winter evening, with faint extensions of galaxies and delicate nebulosity emerging from a smooth, dark background. This consistent, regulated cooling makes calibration with dark frames simple and highly effective.

Zero Amp Glow Circuitry

One of the most significant innovations in the ASI533MC Pro is its hardware-level approach to eliminating amplifier glow. Many CMOS sensors exhibit a faint glow originating from the corner of the sensor during long exposures, a persistent artifact that can be difficult to remove completely with calibration frames. ZWO's design incorporates a circuit that eliminates this glow at the source.

This means your raw, uncalibrated images are fundamentally cleaner. You spend less time wrestling with complex processing techniques to subtract gradients and can trust that even very long exposures will have a uniform background from corner to corner. It is a genuine quality-of-life improvement that simplifies your entire imaging workflow.

256MB DDR3 Memory Buffer

To ensure reliable performance during an imaging session, the camera features a 256MB DDR3 memory buffer. This onboard cache serves two critical functions. First, it ensures stable and consistent data transfer over the USB 3.0 connection, preventing dropped frames that can ruin a sub-exposure, especially when using less powerful acquisition computers.

Second, the buffer plays a key role in the amp glow suppression system. By managing data flow from the sensor, it helps the zero-glow circuitry function effectively. This internal memory is a key component that separates "Pro" level ZWO cameras from their smaller counterparts, providing a layer of stability essential for automated or remote imaging.

14-bit ADC and Dynamic Range

The ASI533MC Pro utilizes a 14-bit Analog-to-Digital Converter (ADC), which allows it to capture 16,384 distinct tonal values. This high bit depth, combined with the sensor's large 50,000e full well capacity, provides immense dynamic range. You can capture both the bright, dense core of the Orion Nebula and the faint, wispy outer loops without clipping the highlights or losing the faint details in noise.

During processing, this data depth gives you tremendous flexibility. You have more latitude to stretch the histogram and bring out subtle structures without introducing banding or other digital artifacts. The result is smoother gradients and more natural-looking transitions from the brightest to the dimmest parts of your target.

Connectivity and Power

The camera uses a high-speed USB 3.0 port for data transfer, providing up to 20 frames per second at full resolution for planetary or lunar imaging. For deep-sky work, this high bandwidth ensures your sub-exposures download quickly. A built-in two-port USB 2.0 hub on the rear of the camera is a critical cable-management feature.

You can connect your guide camera and electronic filter wheel directly to the ASI533MC Pro, reducing the number of cables running back to your computer. This minimizes the risk of cable snags during an imaging run. The TEC cooler requires an external 12V DC power supply (not included) to operate, while the camera's imaging functions can be powered solely over USB.

AR-Coated Protective Window

Protecting the sensor is a 21mm diameter window with an anti-reflection (AR) coating. This window is transparent to all visible light and into the near-infrared, ensuring maximum light transmission to the sensor. The AR coatings prevent internal reflections and halos from forming around bright stars, preserving the high contrast of your images.
