Player One Filter Drawer MAX - 2"
Player One Filter Drawer MAX - 2"

Player One Filter Drawer MAX - 2"

by Player One
SKU POA-FD-MAX
CA$208.00 - CA$208.00
CA$208.00
CA$208.00 - CA$208.00
CA$208.00
Price Match Policy!
  • Compatible with Full Frame and APS-C Player One cameras (Poseidon, Zeus, Artemis, Ares, and more)
  • Triple-point metal bead screw locking system for ultimate stability
  • 21mm optical length with support for both screw-on and threaded connections
2 in stock
Qualifies for FREE Shipping in Canada on orders over $500.



  • Description
  • Specifications
  • In the Box
  • Warranty

  • Player One Filter Drawer MAX

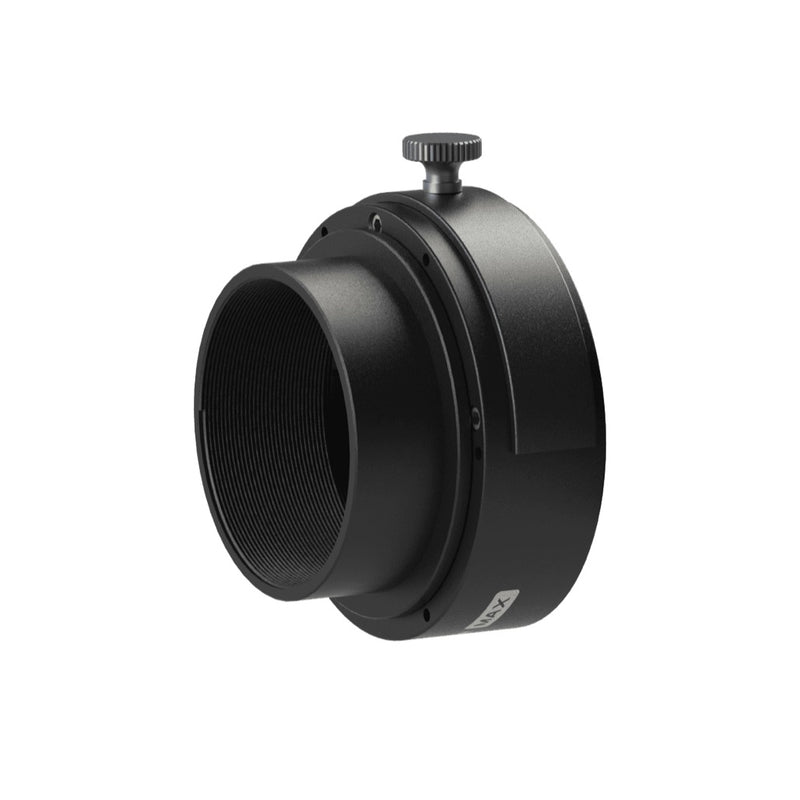

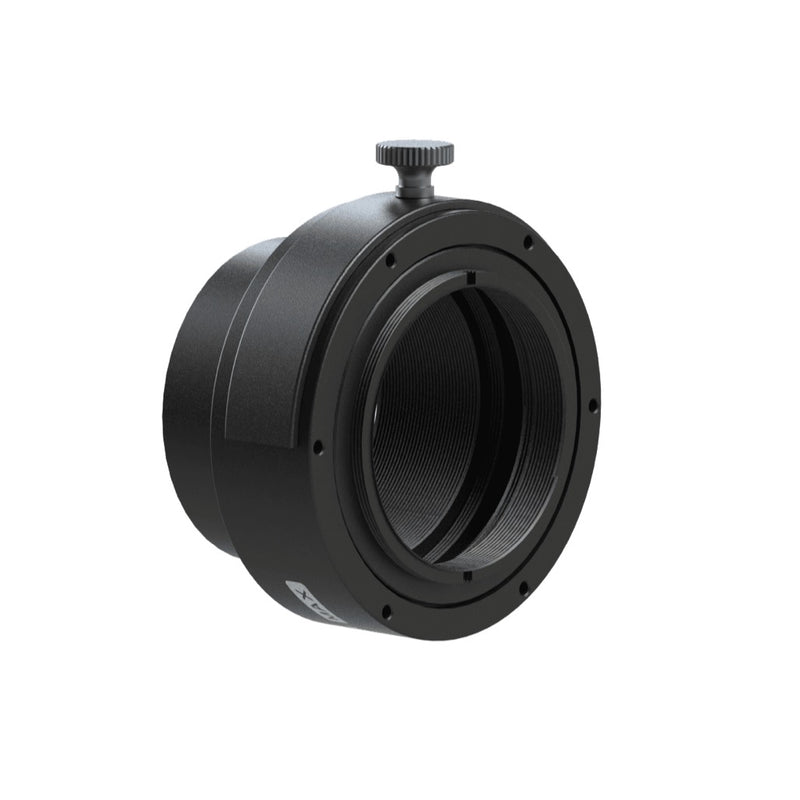

    The Filter Drawer MAX is a premium, heavy-duty solution for astrophotographers using larger sensor cameras. Designed for the Poseidon, Zeus, Artemis, Ares, and PRO series, it provides a rigid 21mm spacing while allowing for rapid filter changes. The drawer features a unique 3-point metal bead screw locking mechanism, ensuring that your 2-inch filters remain perfectly square to the sensor without any tilt or play during long exposures.

    FD-Max Three-Point Lock

    Triple-Point Stable Lock System

    Reliability is critical when using heavy 2-inch filters. The Filter Drawer MAX utilizes a specialized metal bead screw locking mechanism. Unlike standard friction-based locks, this 3-point system applies balanced pressure to the drawer, ensuring it is perfectly centered and held with absolute rigidity. This eliminates any potential for filter tilt or micro-movements that could ruin long-exposure sub-frames during meridian flips or high-altitude slews.

    FD Max Drawer Body

    Filter Support

    The Filter Drawer MAX is optimized for large-sensor imaging. The standard 2" drawer features a precision-machined M48x0.75 female thread, allowing you to securely mount any standard 2-inch filter. For users with existing 1.25" filter collections, this system also supports an optional 1.25" drawer holder, providing the flexibility to use smaller filters within the same robust MAX housing without needing additional adapters.

    FD Max Setup

    Versatile Integration

    Equipped with six M2.5 screw holes on both sides, the Filter Drawer MAX offers professional-grade mounting. The telescope side is designed for a direct, flexure-free connection to the FHD-OAG MAX, while the camera side bolts directly to Player One cooled cameras. For setups requiring standard adapters, it also supports threaded connections to maximize compatibility across various imaging trains.

  • Material

    Aluminum 6061-T6

    Compatible Cameras

    Poseidon, Zeus, Artemis, Ares, Uranus PRO, Apollo PRO

    Filter Size

    2" Mounted (M48x0.75)

    Optical Length

    21mm

    Mounting Interface

    M2.5 Screw Holes & Threaded Support
  • Player One 2-Year Warranty
